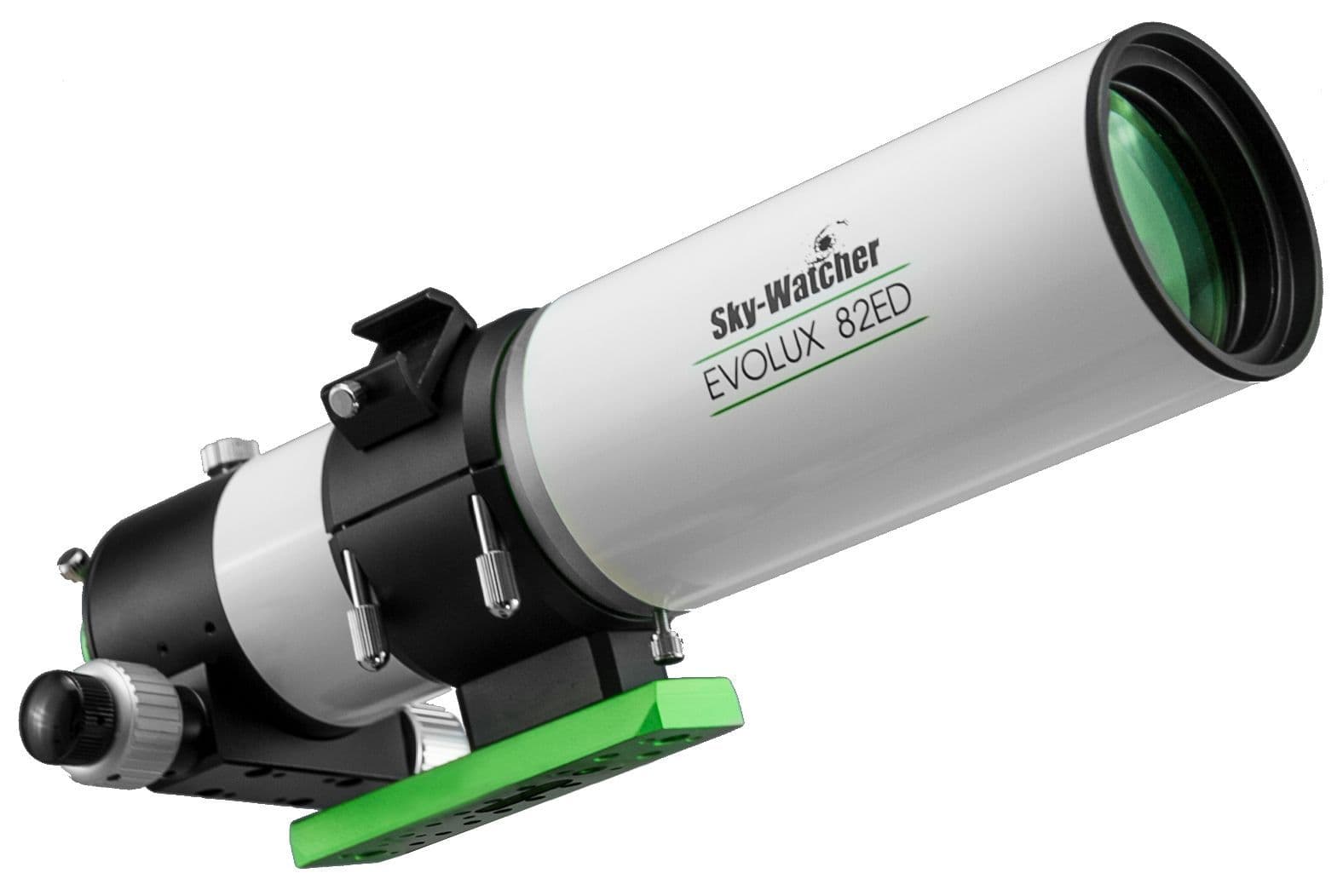

Sky-Watcher EVOLUX-82ED Telescope
82mm (3.2”) F/530 ED Apochromatic Refractor Telescope
Elegant Design. Next-Generation Performance
Building on the foundation of the popular Evostar line of doublet ED refractors, Sky-Watcher has developed the all-new Evolux ED series. Designed for the discerning astrophotographer looking for a lightweight scope that still packs a punch. Naturally, Evolux ED models offer excellent performance for visual use too. Evolux ED models have key upgrades in the optics and the mechanics, making them the perfect fit for a widefield grab-and-go setup. Evolux ED apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The doublet lens assembly utilises a proprietary combination of optically matched lenses, including one ED lens element, that delivers sharp stars with charcoal-black, contrast-rich skies, whilst virtually eliminating false colour. All lens elements feature Sky-Watcher's proprietary Metallic High-Transmission Coatings™ (MHTC™) which are the finest photon anti-rejection coatings in their class, optimising light throughput to up to 99.5%! The Evolux-82ED comes in a foam-lined aluminum case with a 2.4-inch 11:1 dual-speed rack-and-pinion focuser, 45mm dovetail bar, clamshell ring, and adjustable dew shield. An optional 0.9x two-element focal reducer/field flattener, which includes one ED lens element and adaptor/field rotator, is available separately, which when combined makes the Evolux-82ED into a four-lens optical system comprising two ED elements!
Optical Design: Apochromatic ED Doublet Refractor, Air Spaced, Fully Multi-Coated
Objective Lens Diameter: 82mm
Telescope Focal Length: 530mm (f/6.45)
Focal Length with optional 0.9x Reducer/Flattener: 477mm (f/5.8)
Field of View with optional 0.9x Reducer/Flattener: 4.34°
Dual-Speed 2.4” Rack & Pinion Focuser with Indexed Drawtube
2" (50.8mm) Visual Adaptor with Compression Ring
Clamshell Ring with 45mm Dovetail Mounting Bar
Supplied with two fitted finderscope shoes (Note: Photos only show one shoe)
Supplied without Star Diagonal, Finderscope or Eyepieces
Aluminium Carrying Case
Tube Length Retracted/Extended: 425mm/580mm
OTA Weight: 2.92kg with supplied accessories
Optional Extras - use dropdown menu at add to cart to add to order..
Aluminium Accessory Dovetail Handle - £24.00
Attaches to the top of the clamshell ring of the Evolux-62ED and Evolux-82 ED refractor telescopes with two supplied Allen screws. Can be used both as a carrying handle and also for mounting accessories. A slot runs nearly the length of the handle and can be used to attach accessories using either 1/4-20 or M6 screws. Made from aluminium and anodised in Sky-Watcher's signature green.
0.9x Reducer/Field Flattener for Evolux-82ED (Product Code 20112) - £239
Two-element design incorporating one ED element. Reduces the standard focal length of the Evolux-82ED by a factor of 0.9x and provides top quality field-edge correction. The flattener / reducer illuminates a full frame format and provides pinpoint star imaging over a 36mm image circle. Provides focal length of 477mm & f/5.8. Field of View 4.34°. Back focus 55mm. Fully multi-coated. Supplied with adaptor/field-rotator. Filter thread inside adaptor to mount 2” filters. M56x1 female / M48 male threads. Can be used in conjunction with Sky-watcher’s M48 Canon or Nikon T-ring adaptors (product codes 20237 & 20238).
